Wire Mesh Fence

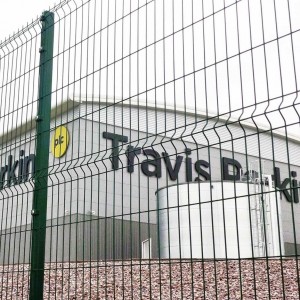

Welded wire mesh fence panel is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on.
Welded wire mesh fence panel is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
Widely used for prevention for road, highway, railway, garden, airport, residential district, seaport, feeding and husbandry, military base.
| Height |
Wire diameter |
Mesh opening |
Bending mesh |
Panel width |
Post type |
|
|
830mm |
3.0mm-6.0mm |
50*100mm 55*100mm 50*200mm 55*200mm |
50*200mm 55*200mm 50*100mm 55*100mm |
2.5m or 3.0m |
Type 1 SHS TUBE |
50*50mm 60*60mm 80*80mm 100*100mm |
|
1030mm |
||||||
|
1230mm |
||||||
|
Type 2 RHS TUBE |
40*60mm 40*80mm 60*80mm 80*100mm |
|||||
|
1430mm |
||||||
|
1530mm |
||||||
|
Type 3 Round Pipe |
∅42mm ∅48mm ∅60mm ∅75mm |
|||||
|
1730mm |
||||||
|
1830mm |
||||||
|
2030mm |
Type 4
Peach post |
50*70mm
70*100mm |
||||
|
2430mm |
||||||
|
2530mm |
||||||
| Surface treatment: 1: hot dipped galvanized after welding2: galvanized and electrostatic polyester powder coated3: galvanized and PVC coated | ||||||
Colors
The panels are made of galvanised steel wires, unpainted or painted in a colour with the powder method. The fence posts are galvanised, then painted in a colour also with the powder method. Standard painting colour - green RAL 6005. Other colours available at the customer's request.
