Hesco Barrier
Specification

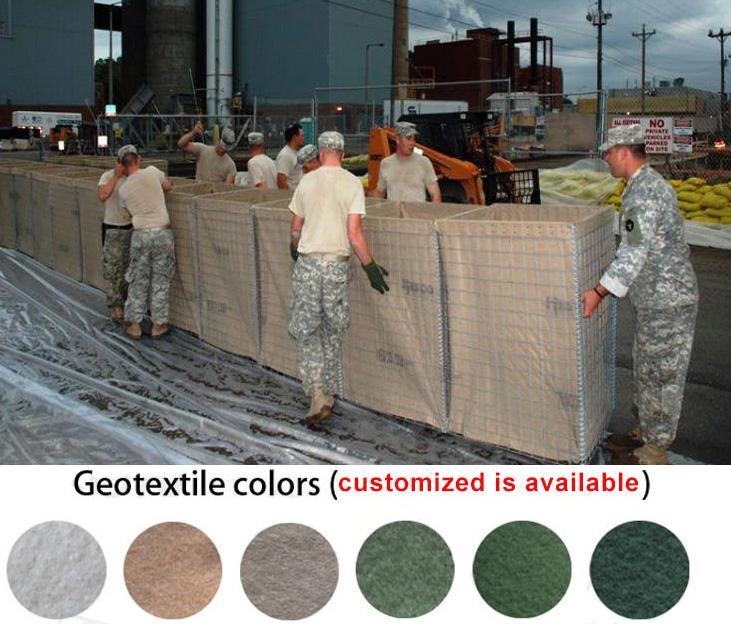

Military wall hesco barrier is gabion-like. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
| Military Sand Defence Wall Hesco Barrier | |||
| Model | Height | Width | Length |
| MIL1 5442 | 54"(1.37m) | 42"(1.06m) | 32'9"(10m) |
| MIL2 2424 | 24"(0.61m) | 24"(0.61m) | 48''(1.22m) |
| MIL3 3939 | 39"(1.00m) | 39"(1.00m) | 32'9''(10.00m) |
| MIL4 3960 | 39"(1.00m) | 60"(1.52m) | 32'9''(10.00m) |
| MIL5 2424 | 24"(0.31m) | 24"(0.61m) | 10'(3.05m) |
| MIL6 6624 | 66"(1.68m) | 24"(0.61m) | 10'(3.05m) |
| MIL7 8784 | 87''(2.21m) | 84''(2.13m) | 91''(27.74m) |
| MIL8 5448 | 54"(1.37m) | 48''(1.22m) | 32'9"(10m) |
| MIL9 3930 | 39"(1.00m) | 30"(0.76m) | 30'(9.14m) |
| MIL10 8760 | 87''(2.21m) | 60"(1.52m) | 100'(30.50m) |
| MIL11 4812 | 48''(1.22m) | 12"(0.30m) | 48''(1.22m) |
| MIL12 8442 | 84''(2.13m) | 42"(1.06m) | 108''(33m) |
| MIL19 10842 | 108''(2.74m) | 42"(1.06m) | 10'5''(3.18m) |

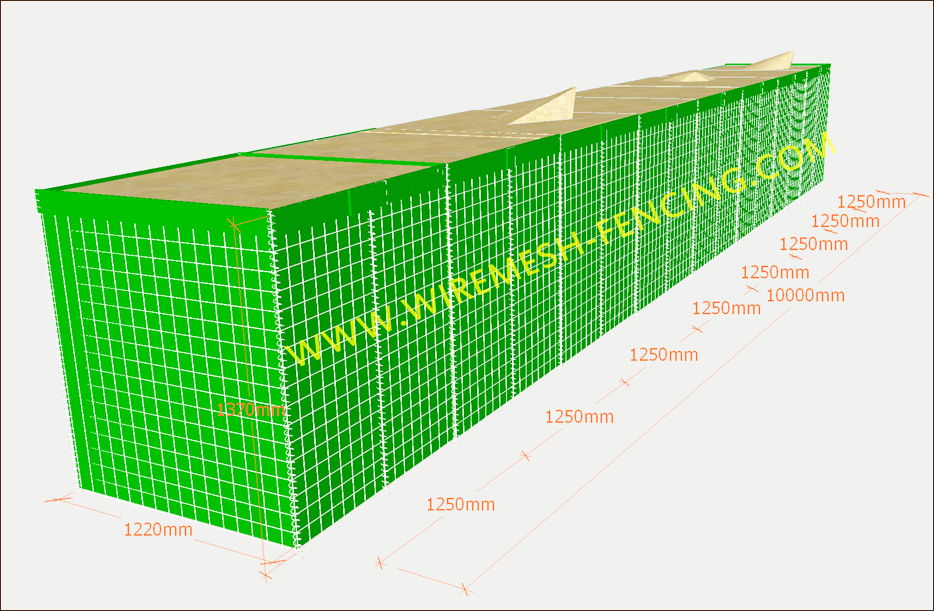

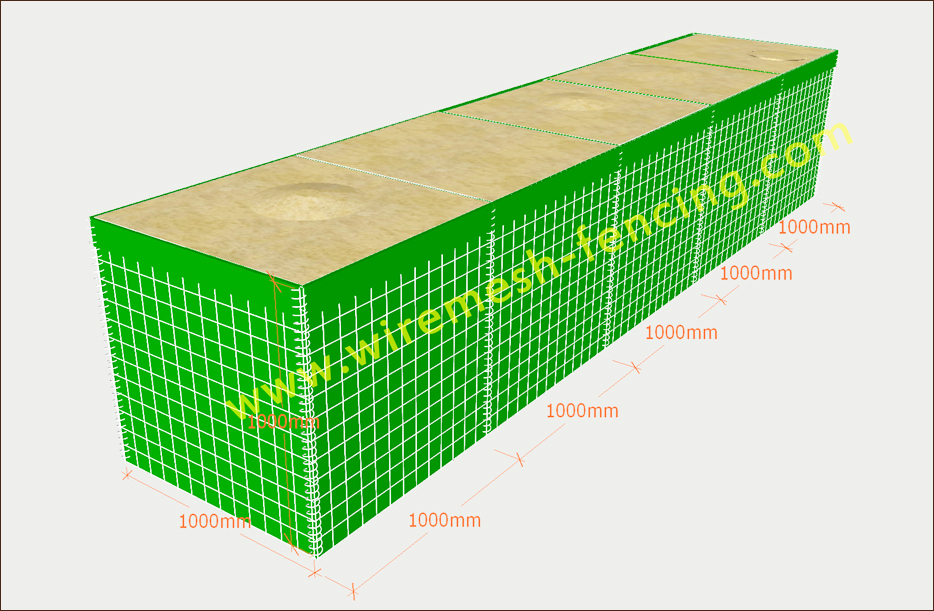

Drawing

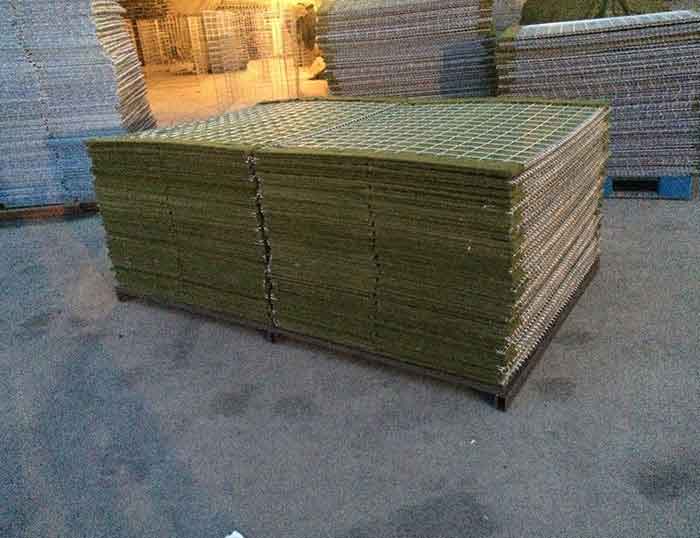

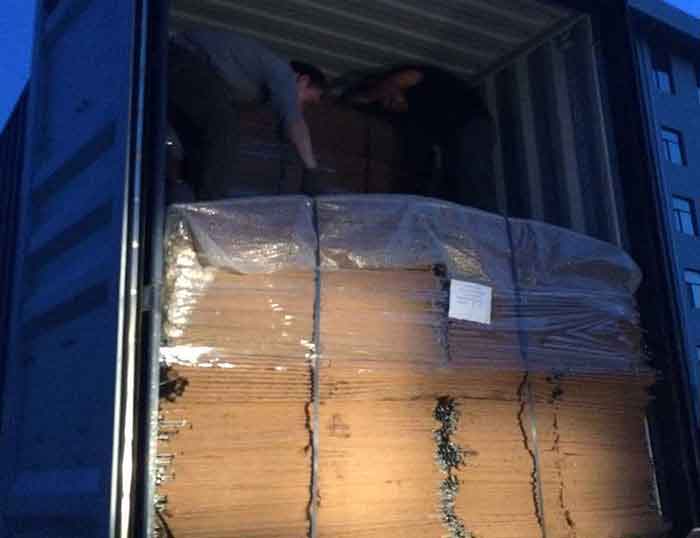

Packing & Delivery

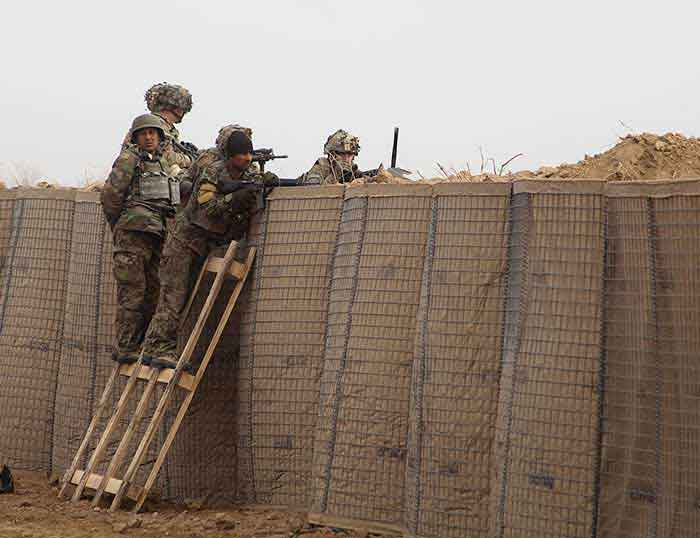

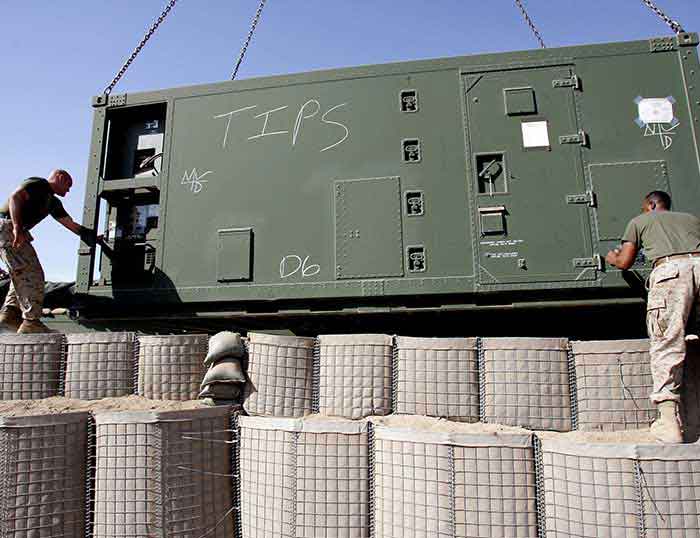

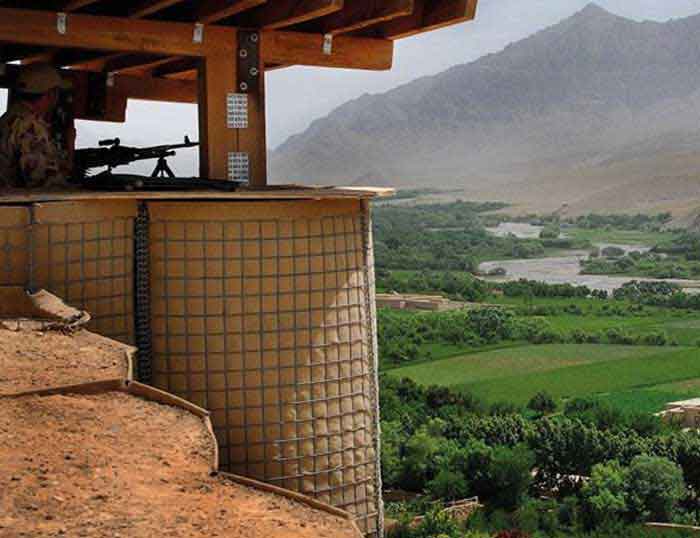

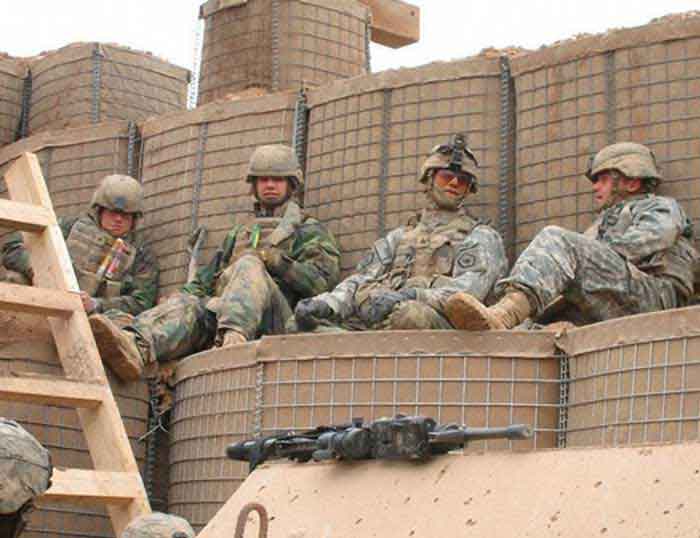

Project
