Chain Link Fence
Description of Chain Link Fence

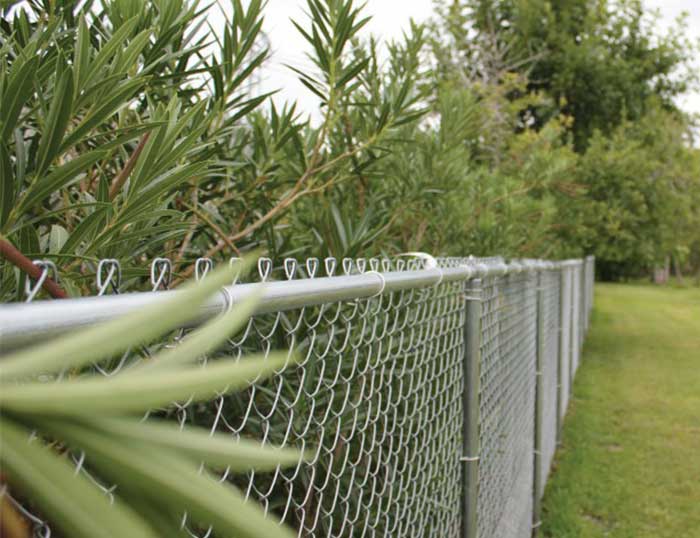

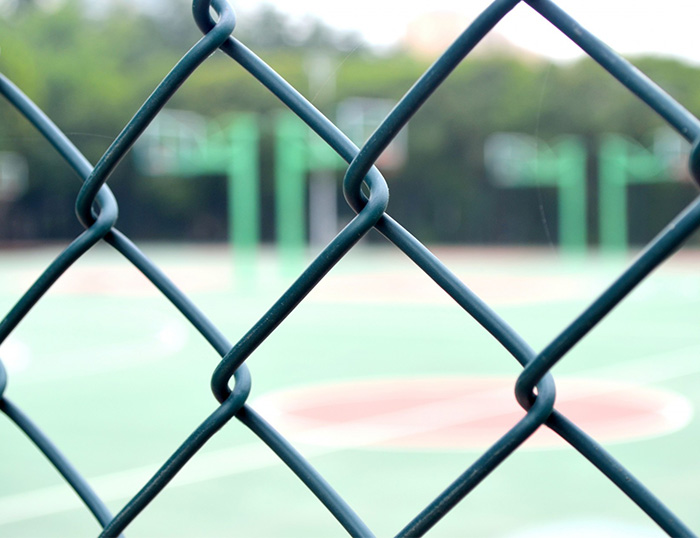

Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.
Specification of Chain Link Fence
| Chain Link Fence | |
| Material | Galvanized iron wire or PVC coated iron wire |
| Surface Treatment | PVC coated, PVC sprayed, electric galvanized, hot dipped galvanized |
| Wire Thickness | 2.2-5.0 mm |
| Mesh Opening | 20 x 20 mm,50 x 50 mm,60 x 60 mm,80 x 80 mm,100 x 100 mm etc |
| Mesh Height | 0.5 m-6 m |
| Mesh Length | 4 m-50 m |
| Post & Rail Diameter | 32 mm, 42 mm,50 mm,60 mm,76 mm,89 mm etc |
| Post & Rail Thickness | 1.5 mm,2.0 mm,3.0 mm,4.0 mm,5.0 mm etc |
| Galvanized Chain Link Mesh | |||
| Mesh | Wire Diameter | Width | Length |
| 40*40 mm | 1.8 - 3.0 mm | 0.5 - 4.0 m | 5 - 25 m |
| 50*50 mm | 1.8 - 3.5 mm | 0.5 - 4.0 m | 5 - 25 m |
| 60*60 mm | 1.8 - 4.0 mm | 0.5 - 4.0 m | 5 - 25 m |
| 80*80 mm | 2.5 - 4.0 mm | 0.5 - 4.0 m | 5 - 25 m |
| 100*100 mm | 2.5 - 4.0 mm | 0.5 - 4.0 m | 5 - 25 m |
