Roll Top Fence

Description of Roll Top Fence

Roll top fence is completely fence system it is conclusive of fence panel, post, gates and fastener system ,the post is fitted with M8 threaded inserts for securing panels, with a wide range of heights available. posts come inclusive of top caps.

Specification of Roll Top Fence

Panels

• Wire Diameter: 4 mm,5 mm,6 mm,7 mm,8 mm
• Hole size: 50 mm*150 mm; 50 x 200 mm; 50 x 100 mm; 75 x 100 mm, 75 x 200 mm; 75 x 300 mm
• Panel Size:
  • 900 mm(H)*2400 mm/3000 mm
  • 1200 mm(H)*2400 mm/3000 mm
  • 1500 mm(H)*2400 mm/3000 mm
  • 1800 mm(H)*2400 mm/3000 mm
  • 2100 mm(H)*2400 mm/3000 mm

Post

• Round post,
  • Size: 48 mm; 60 mm
  • Thickness: 1.5 mm 2.0 mm 2.5 mm 3.0 mm
• Square Post,
  • Size: 50 x 50 mm 60 x 60 mm,80 x 80 mm
  • Thickness: 1.5 mm 2.0 mm 2.5 mm 3.0 mm
  • Accessories : U-Clip, Bolt & Nuts, Flat Bar etc

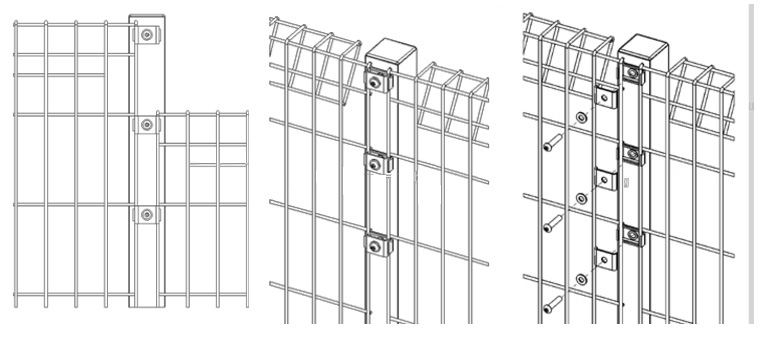

Installation of Roll Top Fence

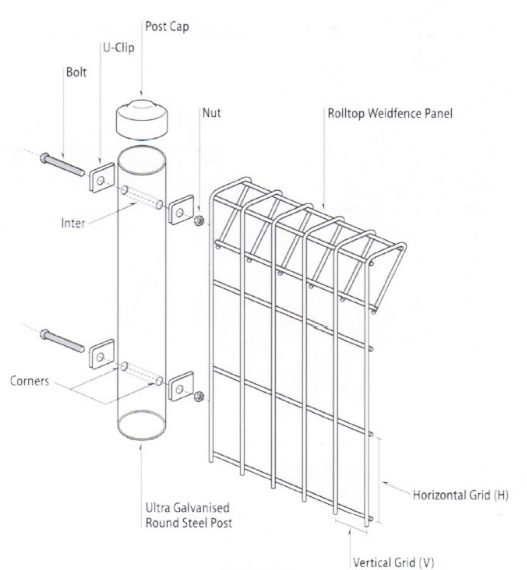

Installation of Roll Top Fence with Round Post

Application of Roll Top Fence

• General boundary fencing
• Security fencing
• Sports fencing
• School fencing
• Steel cages
• Steel grills
• Steel gates
• Roof netting

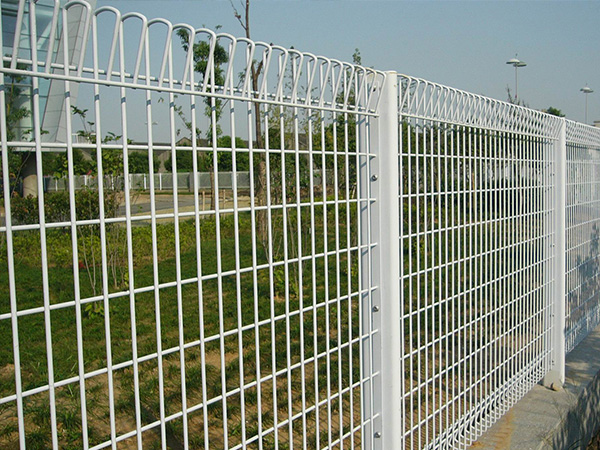

BRC Fence Installed in Park

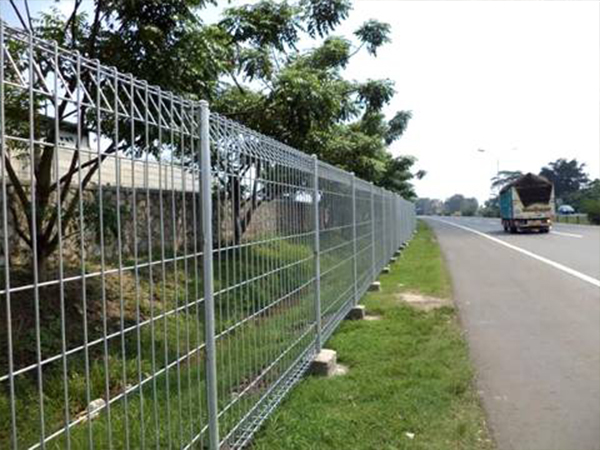

BRC Fence Installed in Road

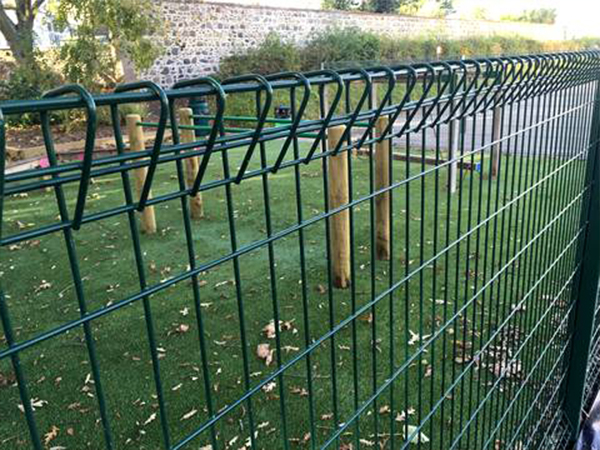

BRC Fence Installed in School

Package of Roll Top Fence

•  Fence panel: plastic film+wood/metal pallet

• Fence post:every post pack with a plastic bag(the cap is cover the post)+metal pallet

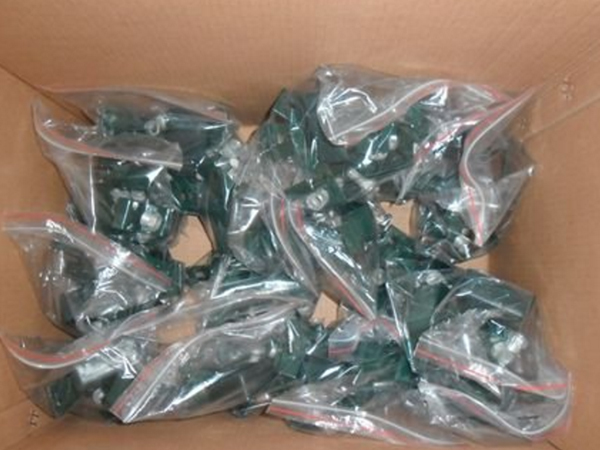

• Accessory:small plastic bag+carton box

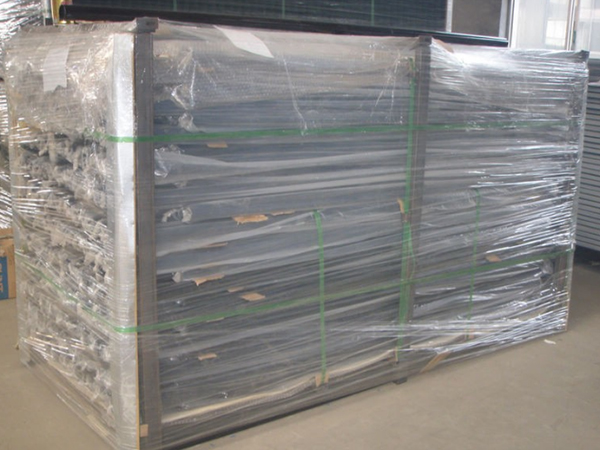

Fence Panels are Packaged in Plastic Film

Fence Posts are Packaged in Plastic Bag+Carton Box
