Description of Clearvu Fence

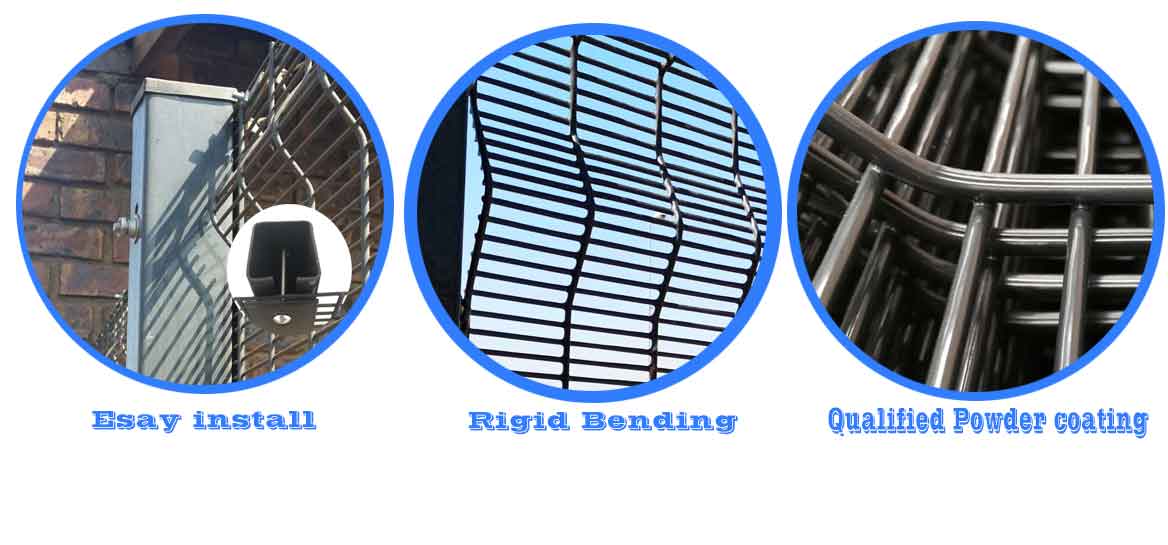

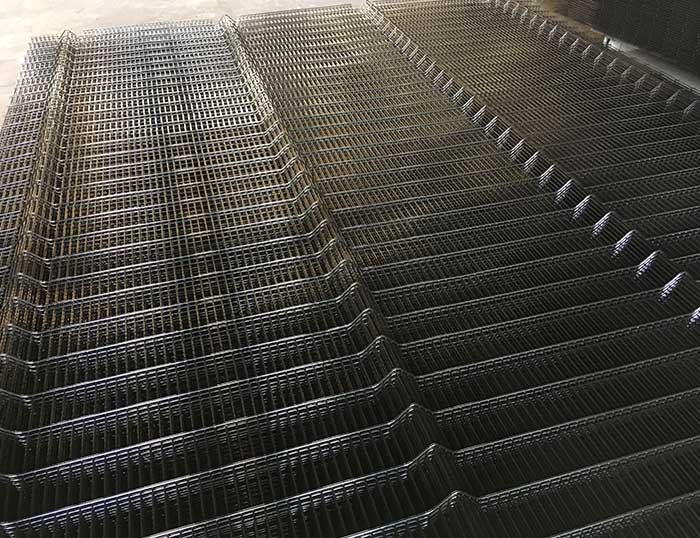

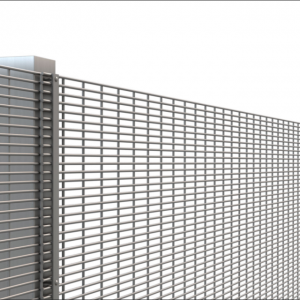

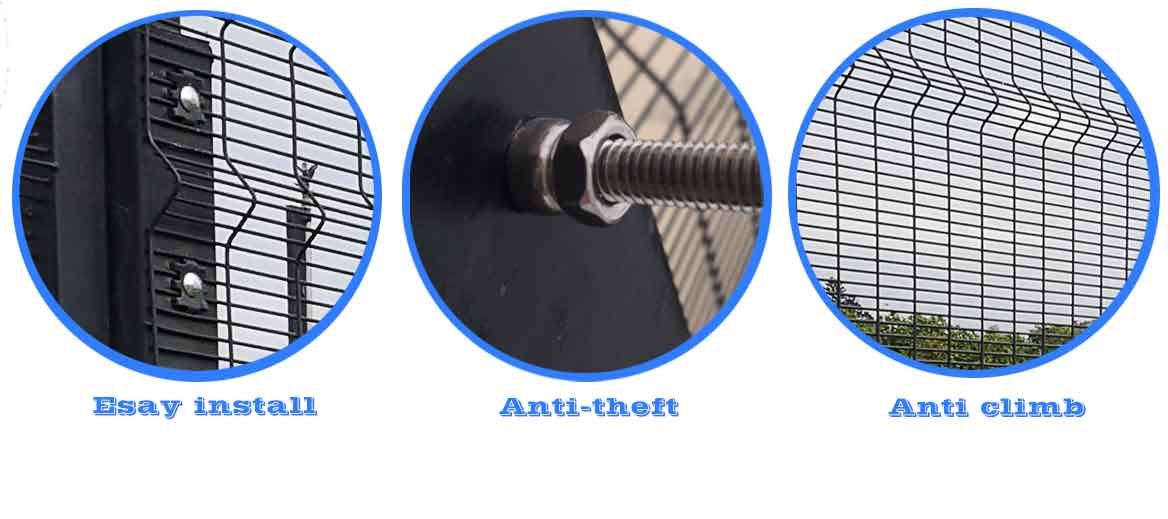

Clearvu Fence is a high-security fence featuring a fine mesh that effectively prevents cutting with standard tools and discourages climbing. The panels feature V-shaped bends, which enhance the fence’s strength whilst improving its aesthetic appeal.

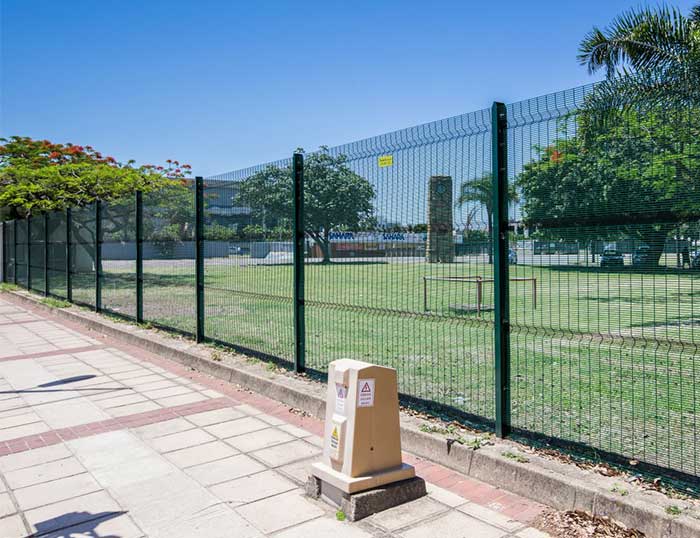

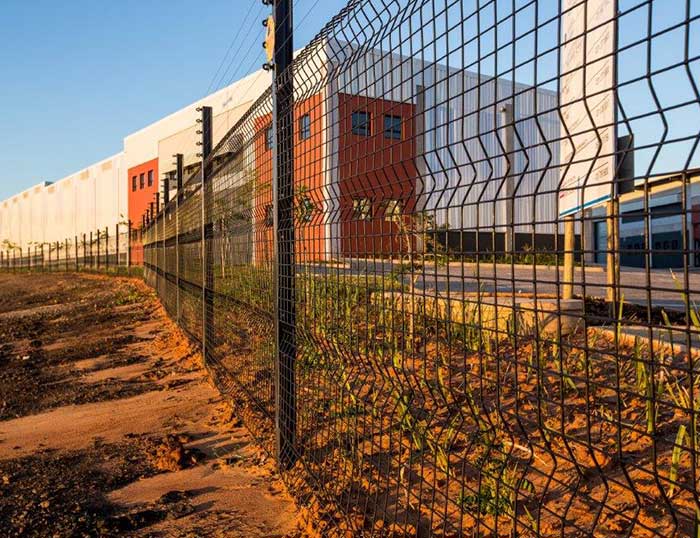

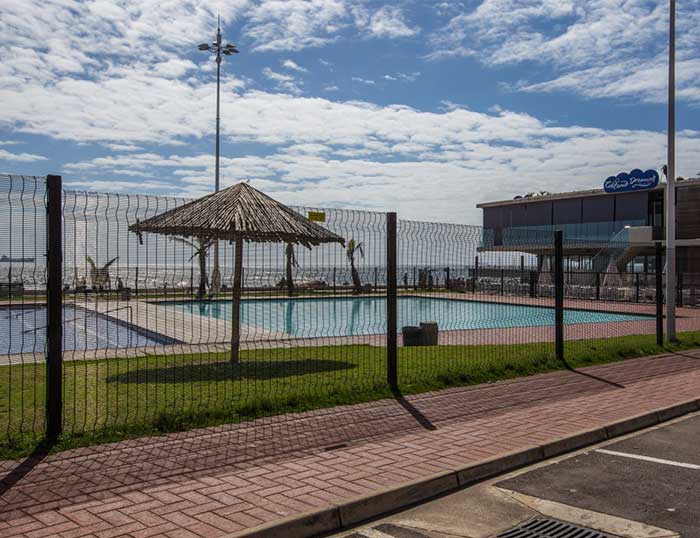

Thanks to its excellent visibility and high level of security, our Clearvu Fence is widely used in residential areas, factories, and high-security locations such as military bases and border posts.

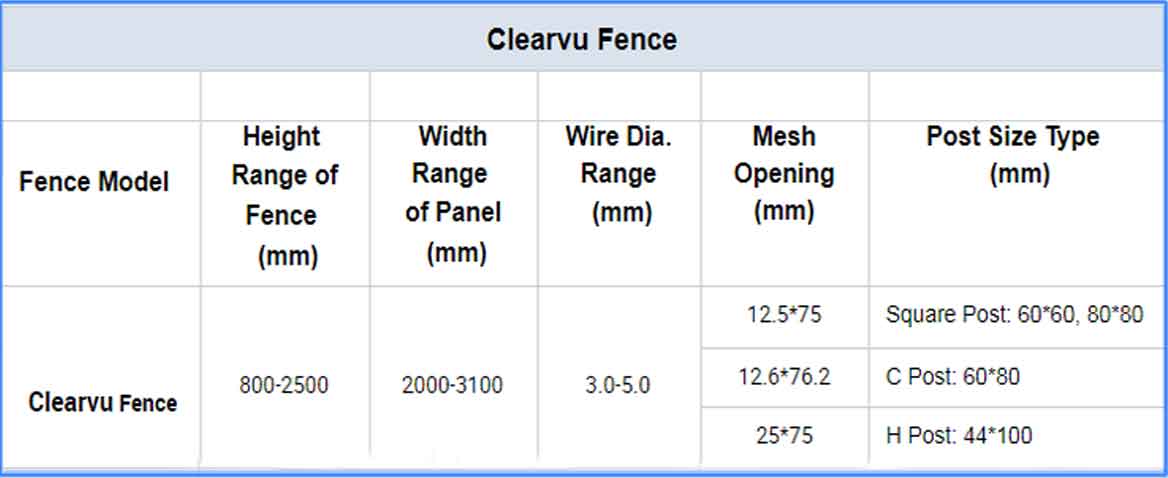

Specification of Clearvu Fence

height: 1.8 m - 3.0 m;
width: 2.0 m - 3.0m.
Surface Treatment: Hot dipped galvanized, powder coated after galvanized wire welded.

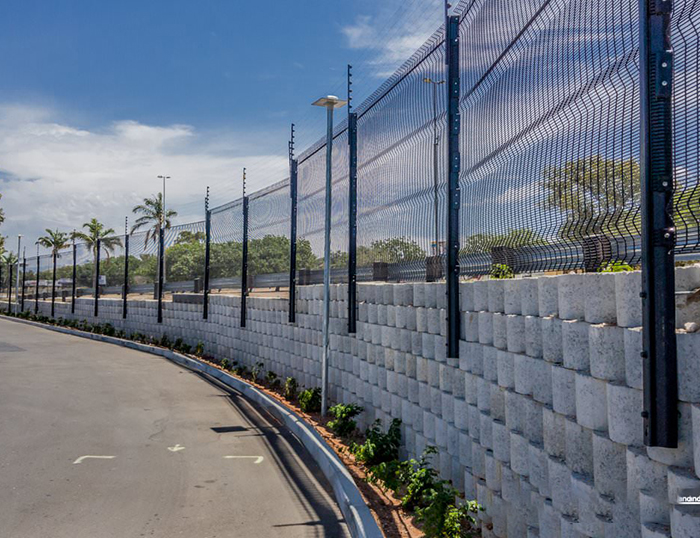

Security Material on the top: razor wire, barbed wire, fence spikes.

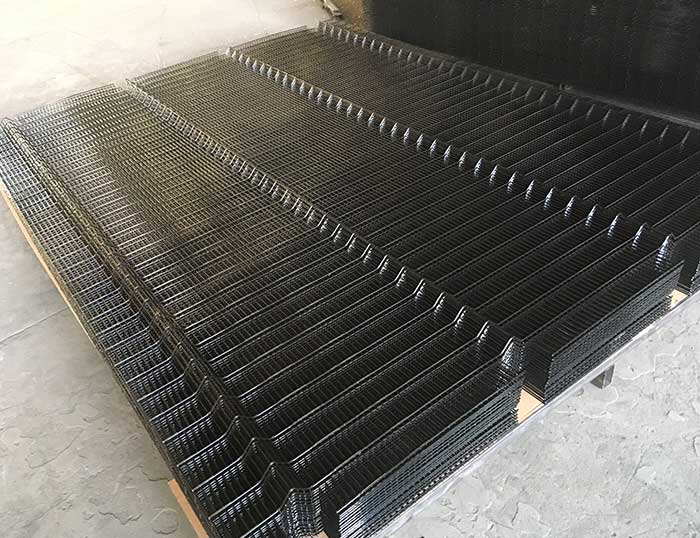

Clear view fencing panels options
Security options	Aperture	Vertical Wire Thickness	Horizontal Thickness	Features

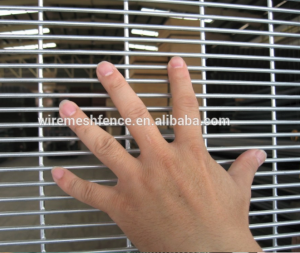

High Security	76 mm × 12.5 mm	4 mm	3.5 mm	most secure, anti-cut, anti-climb, highly visible
Medium Security	76 mm × 25 mm	4 mm	4 mm	anti-cut, and highly visible
Low Security	76 mm × 50 mm	4 mm	4 mm	anti-cut, and highly visible, cost effective

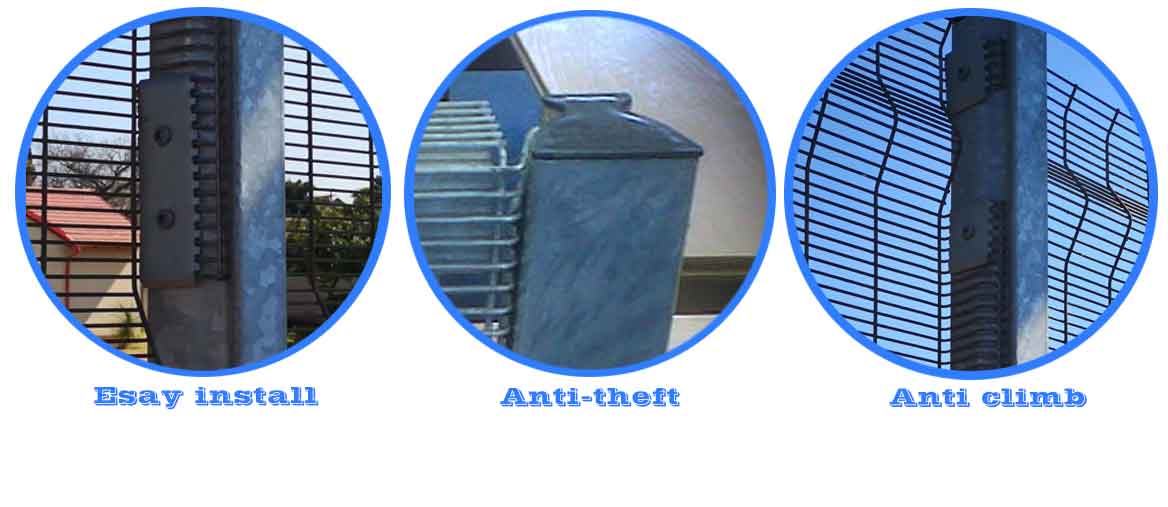

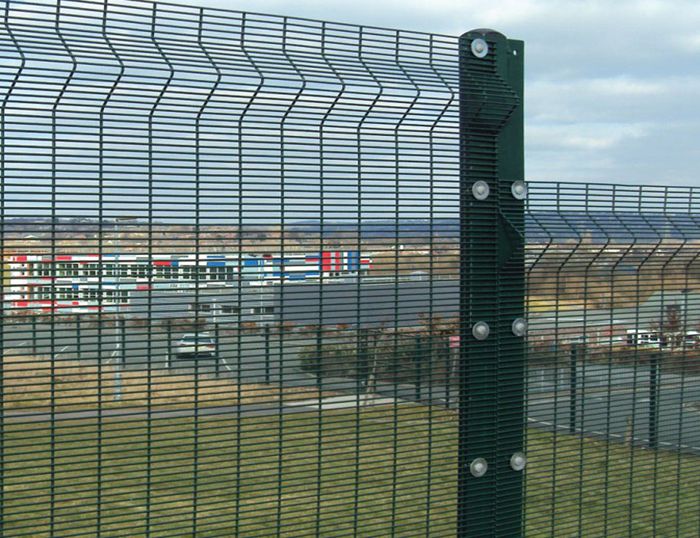

Table-2: Clear view fencing installation posts and clamps
Fence height	Panel size height × width	Posts section	Post length	No.of bends	No. of clamps
1800 mm	1800 mm × 2515 mm	60 × 60 × 2 mm	2400 mm	4	4
2000 mm	2000 mm × 2515 mm	60 × 60 × 2 mm	2600 mm	4	4
2200 mm	2200 mm × 2515 mm	60 × 60 × 2 mm	2800 mm	4	4
2400 mm	2400 mm × 2515 mm	80 × 80 × 3 mm	3000 mm	4	4
3000 mm	3000 mm × 2515 mm	80 × 80 × 3 mm	3600 mm	5	5

Packing of Clearvu Fence

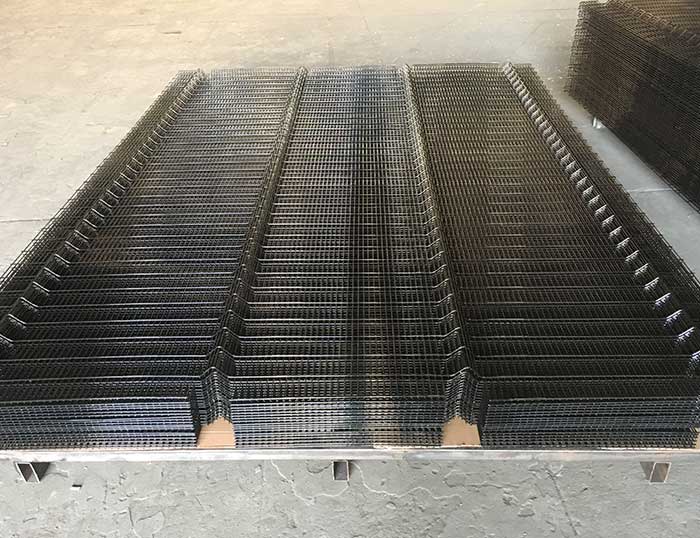

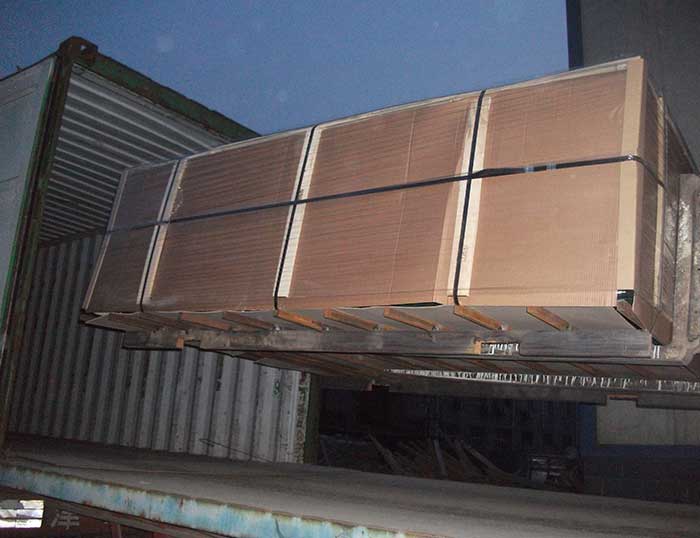

The mesh panels will be placed on steel pallets, wrapped on all sides with cardboard and plastic film, and finally secured with packing straps. Wooden boards will be placed on top and bottom to provide additional protection for the mesh panels.
